Name: Automatic Bearing Vibration Testing Machine | Laboratory Shaker Table & Vibration Analysis Device
Brand: ASLi (China) Test Equipment Co., Ltd
Price: 100000.00 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

دقت: 0.1

قدرت: 40kva

کلاس حفاظتی: IP55

ولتاژ: 380 V

جهت ارتعاش: افقی عمودی

زور: 20 کیلوگرم

جابجایی: 51 میلی متر

شتاب: 100 گرم

حداکثر بار: 270 کیلوگرم

محدوده فرکانس: 3-3500 هرتز

سرعت: 1.6 متر بر ثانیه

وزن سیم پیچ متحرک: 3.5 کیلوگرم

قطر سیم پیچ متحرک: φ150 میلی متر

نیروی سینوسی دارای رتبه: 3000 نیوتن

نیروی تصادفی رتبه بندی شده: 3000 نیوتن

برجسته کردن:

automatic bearing vibration tester,laboratory shaker table machine,vibration analysis testing device

laboratory shaker table machine

vibration analysis testing device

اطلاعات اولیه

محل منبع: گوانگدونگ، چین

نام تجاری: ASLI

پرداخت

گالری

Automatic Bearing Vibration Testing Machine | Laboratory Shaker Table & Vibration Analysis Device

توضیحات محصول

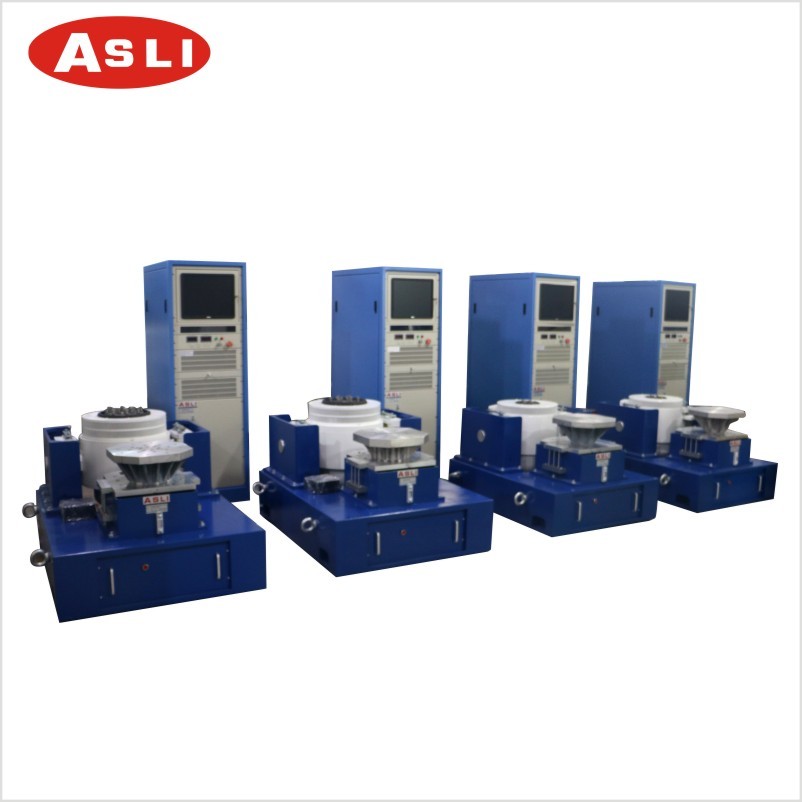

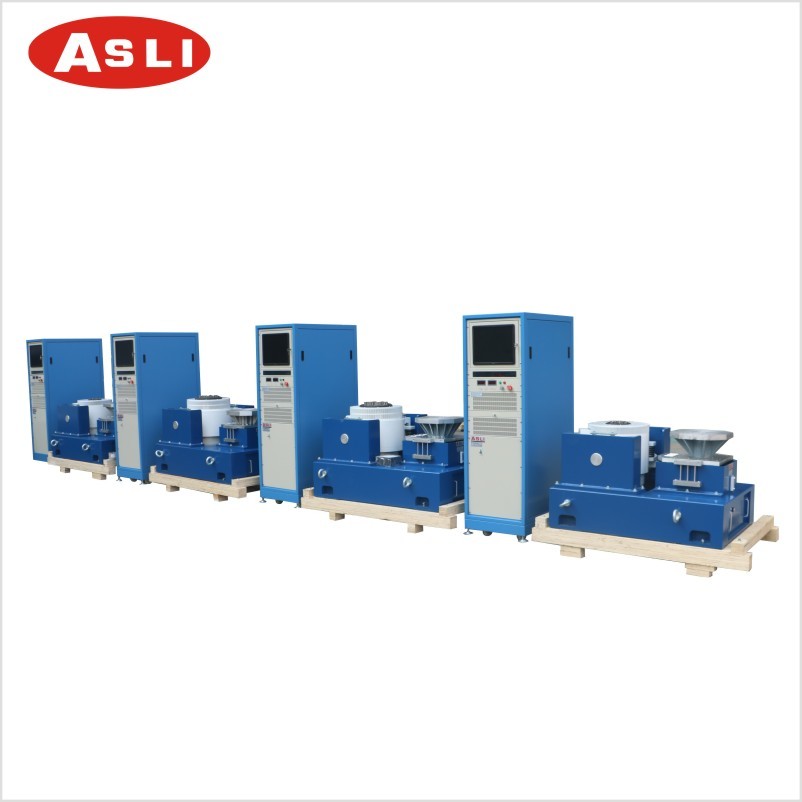

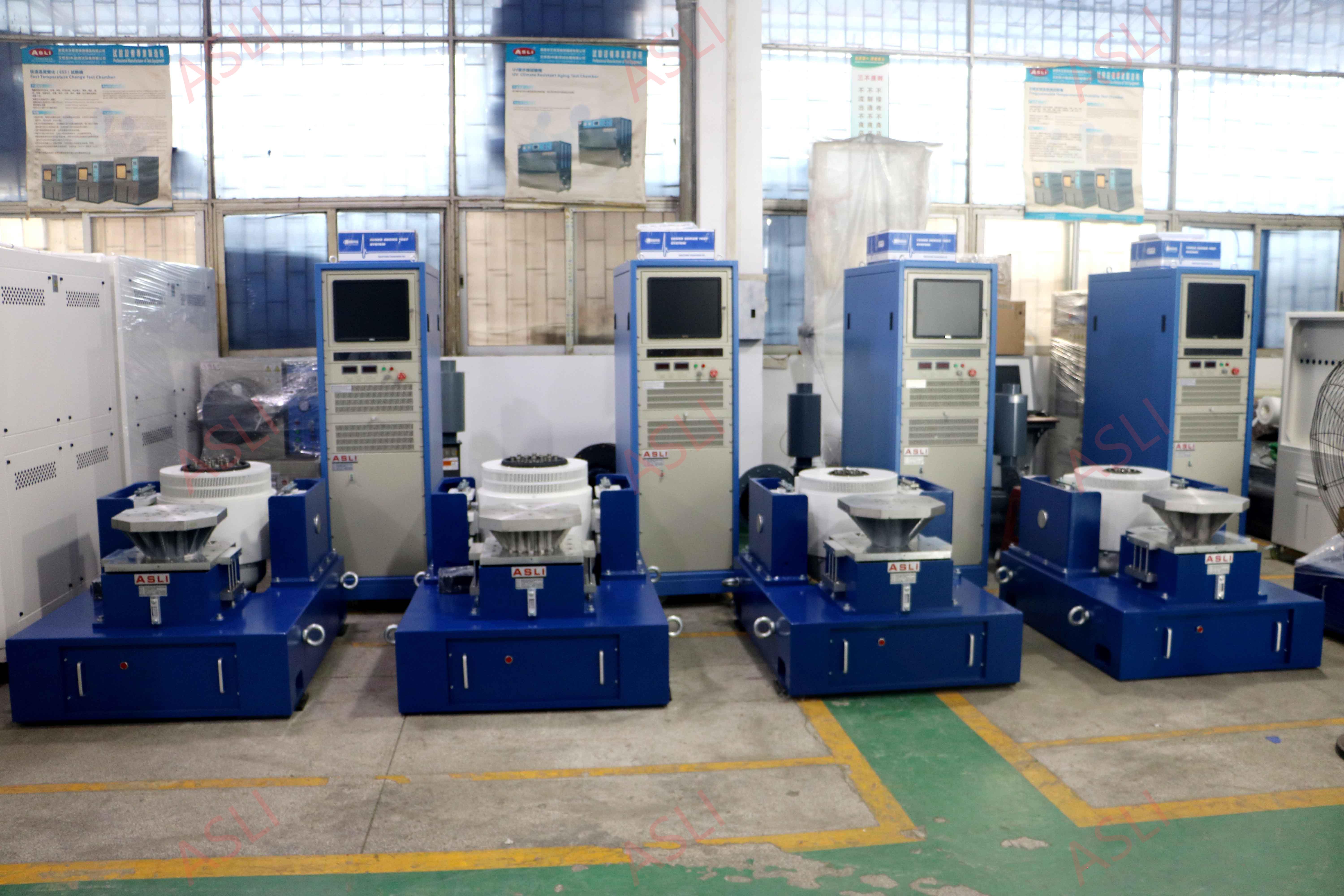

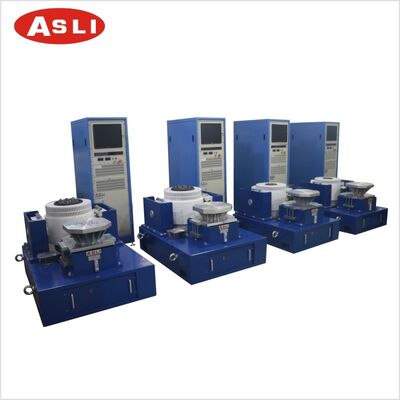

Automatic Bearing Vibration Testing Machine | Laboratory Shaker Table & Vibration Analysis Device

High-Precision Vibration Testing and Analysis Equipment for Bearings, Motors, and Mechanical Parts — Laboratory Shaker Table for Reliability, Fatigue, and Dynamic Performance Evaluation

Application

This automatic bearing vibration testing machine is a mechanical measuring instrument and laboratory shaker table primarily used for product vibration and shock environmental testing, environmental stress screening tests, and reliability tests. It serves industries including aerospace, communications, electronics, electrical, and home appliances. The platform meets various test specifications such as IEC, MIL-STD, JIS, and ASTM.

Technical Specifications

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²)	Rated Speed (m/s)	Rated Displacement (p-p) mm	Max. Loading (Kg)	Moving Coil (Kg)	Dimension of Moving Coil (mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	51	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES-120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500
ES-160	160000	160000	3-2100	1000	1.8	51	1500	150	Φ600
ES-200	200000	200000	3-2000	1000	1.8	51	2500	200	Φ650
ES-350	350000	350000	3-1700	1000	1.8	51	4500	300	Φ870

Product Features

Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.
Rapid self-examination diagnosis and chain protection, high safety and reliability.
The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
Provide different use of horizontal and vertical expansion platforms.
It can be used with all kinds of vibration controllers, and the operation is simple.
