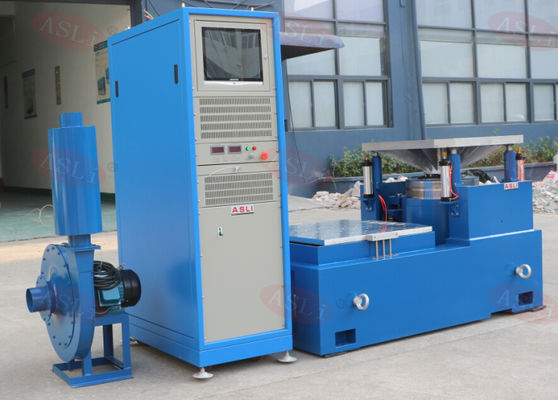

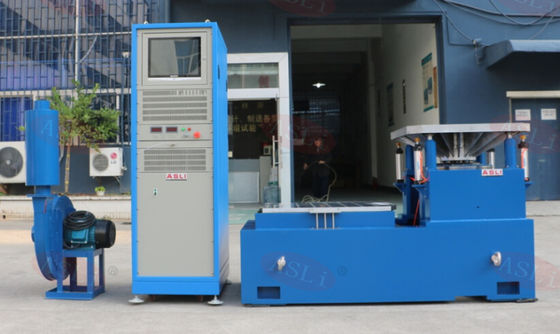

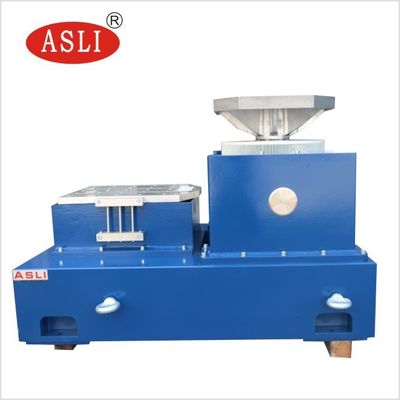

Bump Shock Vibration Impact Instrument Mechanical Tester
Product Overview
This mechanical tester is designed for discovering early faults, simulating actual working conditions, and conducting structure strength tests. With wide application range and remarkable test effects, it features sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control functions with full computer control.
Test Standards
ISO, UL, GB, EN, DIN, JIS, CNS, CE, IEC, BS, etc.
Key Features
- Large loading capacity with maximum displacement of 51MMP-P and low working frequency (2HZ)
- Meets requirements of sinusoidal vibration test methods (fixed frequency or swept frequency) for international transport package testing
- Hydraulic wheel and linear bearing guidance with low axial rigidity
- Air spring support with large load capacity, excellent low frequency characteristics, and high stability
- High-quality base material for easy installation and smooth operation
- Strong anti-magnetic and anti-interference capabilities with safe, reliable protection
- Computer-controlled operation with immediate data storage
- Low resistance, high performance design with high efficiency and low cost
- High reliability with low fault rate
- Customization options available
Technical Specifications
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s²) |
Rated Speed (m/s) |
Rated Displacement (p-p) mm |
Max. Loading (Kg) |
Moving Coil (Kg) |
Dimension of Moving Coil (mm) |
| ES-6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ 230 |
| ES-6a |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
51 |
250 |
12 |
Φ230 |
| ES-10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
| ES-20 |
20000 |
20000 |
3-3000 |
1000 |
1.8 |
51 |
300 |
30 |
Φ320 |
| ES-30 |
30000 |
30000 |
3-2800 |
1000 |
1.8 |
51 |
450 |
40 |
Φ450 |
| ES-40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
| ES-50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
| ES-60 |
60000 |
60000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
60 |
Φ450 |
| ES-100 |
100000 |
100000 |
3-2500 |
1000 |
1.8 |
51 |
1000 |
90 |
Φ450 |

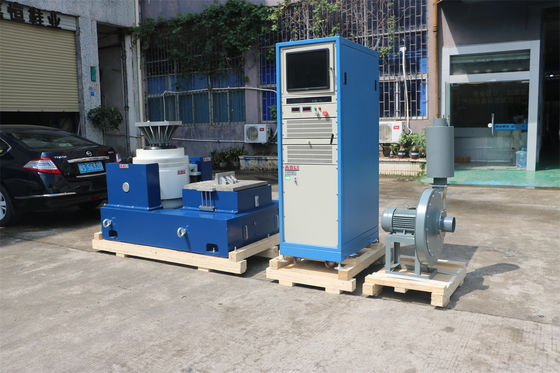

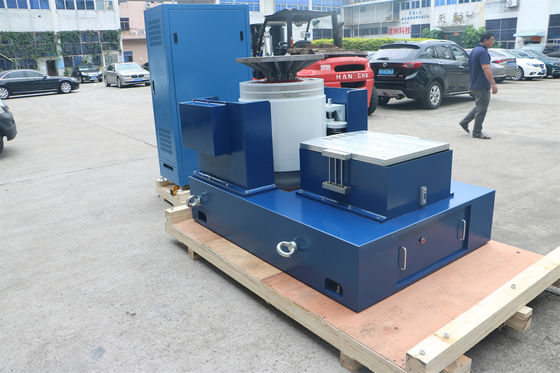

Packaging & Delivery
Professional, environmentally friendly, convenient and efficient packaging services provided to ensure the safety of your goods.

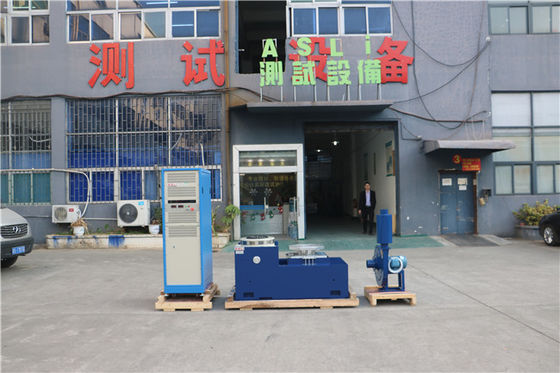

Company Profile
ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Our precision and reliable products are extensively used by industry, research institutions, quality inspection agencies, and colleges worldwide.
Frequently Asked Questions
Q1: Are your company a trading one or a factory?
A: Factory + trade (integration), we have our own factory.
Q2: Do you accept customization service?
A: Yes, we can offer both standard and customized machines according to your requirements.
Q3: What is your product warranty?
A: 1 Year warranty, with lifetime services.
Q4: How about the products quality?
A: Our products comply with ISO, ASTM, GB, MIL-STD and other international standards.
For more information about our Bump Shock Vibration Impact Instrument Mechanical Tester, please don't hesitate to send your inquiry.
