خانه /محصولات/دستگاه تست لرزش/Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test

1
MOQ
$26,890
قیمت
Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
جهت ارتعاش: لرزش عمودی
نیروی ارتعاش: 20 کیلوگرم
روش کنترل: کنترل کامپیوتر
شتاب: 100 گرم
دامنه فرکانس: 3 ~ 3500 هرتز
وزن سیم پیچ متحرک: 30 کیلوگرم
نیروی سینوسی دارای رتبه: 10000N
شتاب امتیازی: 1000 متر بر ثانیه
سرعت: 1.8 متر بر ثانیه
جابجایی رتبه ای: 70 میلی متر
حداکثر بارگذاری: 270 کیلوگرم
ابعاد سیم پیچ در حال حرکت: φ240 میلی متر
نوع قدرت: الکترونیکی
دامنه فرکانس: 3-3000 هرتز
وزن سیم پیچ متحرک: 14 کیلوگرم
برجسته کردن:

20KN Vibration Testing Machine,100g Vibration Test Machine,30kg Electrodynamic Vibration Shaker

,

100g Vibration Test Machine

,

30kg Electrodynamic Vibration Shaker
اطلاعات اولیه
محل منبع: گوانگدونگ ، چین
نام تجاری: ASLI
شماره مدل: ES-20
پرداخت
توضیحات محصول
Competitive Price High Frequency Industrial Vibration Test Machine for Battery Test
This high-frequency industrial vibration test machine is primarily designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves aerospace, communications, electronics, electrical, and home appliance industries. The platform complies with various test specifications including IEC, MIL-STD, JIS, and ASTM standards.

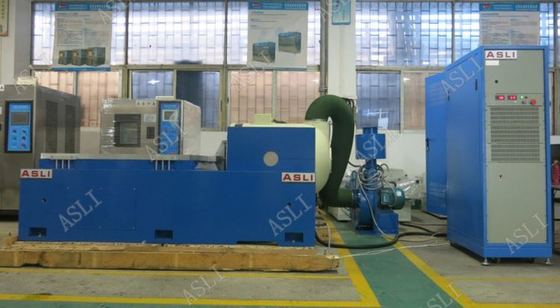

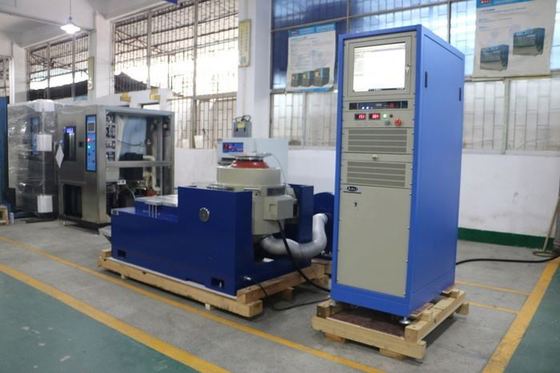

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 0 Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 1
Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving coil (Kg) 14 30 40 50
Dimension of Moving coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide provides strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag features large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
  • Rapid self-examination diagnosis and chain protection ensure high safety and reliability
  • Air bag isolating and damping device eliminates need for special foundation while perfectly reproducing vibration waves and reducing transmission
  • Includes horizontal and vertical expansion platforms for different testing requirements
  • Compatible with various vibration controllers for simple operation
Horizontal Stand Features
  • Small loading bench achieves higher acceleration and working frequency, improving overall machine performance
  • Integrated horizontal bench and vibration bench design offers perfect structure with easy installation and adjustment
  • Static pressure V-shape track provides slope-resistant and bias-loading resistant capacity
  • Built-in oil pump features good structure and easy operation

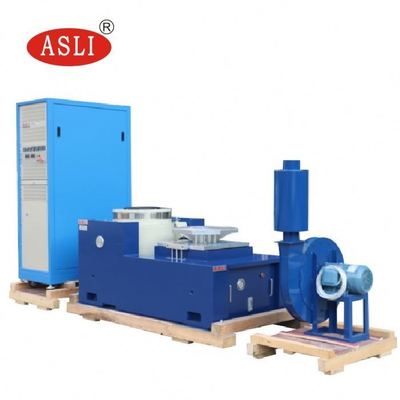

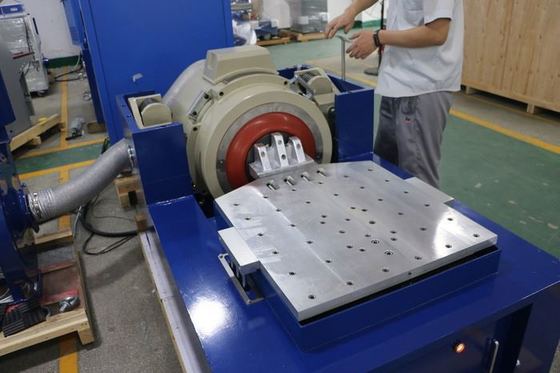

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 2 Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 3
Packing & Delivery

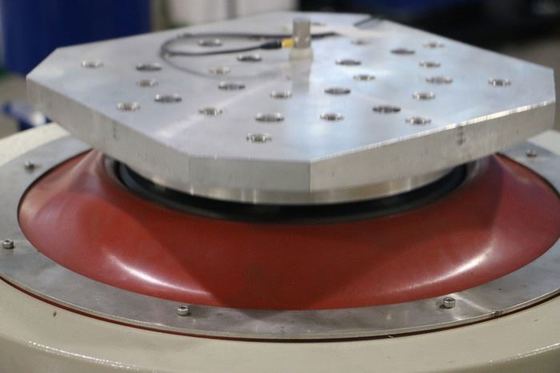

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 4
Professional, environmentally friendly, convenient and efficient packaging services ensure the safety of your goods during transportation.
Company Profile

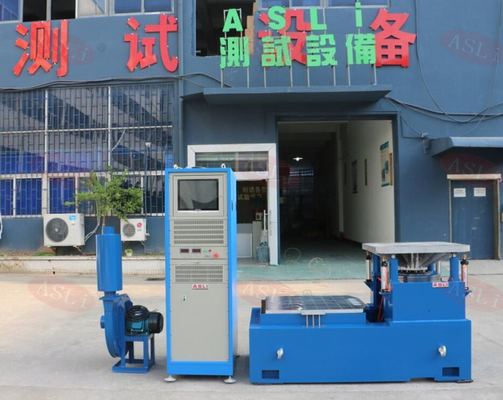

Industrial Vibration Testing Machine with 20KN Force 100g Acceleration and 30kg Moving Coil for Battery Test 5
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our 3-axis high frequency vibration testers are star products that have obtained CE certification.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our Competitive Price High Frequency Industrial Vibration Test Machine for Battery Testing, please contact us.
