Name: High Frequency Vertical Electrodynamics Vibration Shaker System with 10000N Sine Force and 5 Hz to 3000Hz Range
Brand: ASLi (China) Test Equipment Co., Ltd
SKU: ES-10
Price: 50,000.00 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

زور: 10000N

دامنه فرکانس: 5 هرتز تا 3000 هرتز

جابجایی ضربه: 51 میلی متر

وزن سیم پیچ متحرک: 14 کیلوگرم

موج ارتعاش: سینوسی، تصادفی، شوک

جهت ارتعاش: ارتعاش عمودی + ارتعاش افقی

روش کنترل: تقویت کننده

نیروی تصادفی رتبه بندی شده: 10000N

شتاب امتیازی: 1000 متر بر ثانیه

سرعت: 1.8 متر بر ثانیه

Max. حداکثر loading بارگذاری: 270 کیلوگرم

قطر سیم پیچ متحرک: Φ240

فرکانس محوری مرتبه اول: 3500 هرتز

نوع آرمیچر: سبک ، سفتی زیاد

مسیر فشار استاتیک: V شکل

برجسته کردن:

10000N Sine Force Vibration Shaker System,5 Hz to 3000Hz Vibration Test Machine,51mm Impact Displacement Electrodynamics Vibration Shaker

5 Hz to 3000Hz Vibration Test Machine

51mm Impact Displacement Electrodynamics Vibration Shaker

اطلاعات اولیه

محل منبع: گوانگدونگ ، چین

نام تجاری: ASLI

گواهی: CE,Third party calibration qualification report

شماره مدل: ES-10

پرداخت

گالری

High Frequency Vertical Electrodynamics Vibration Shaker System with 10000N Sine Force and 5 Hz to 3000Hz Range

توضیحات محصول

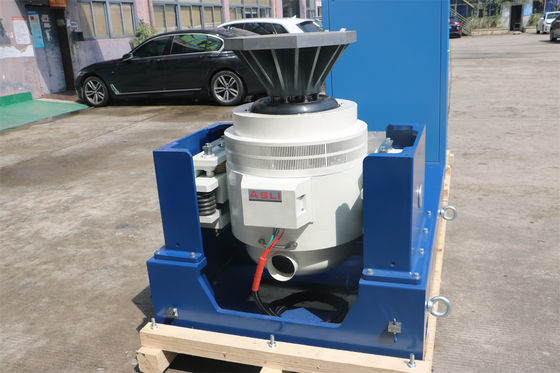

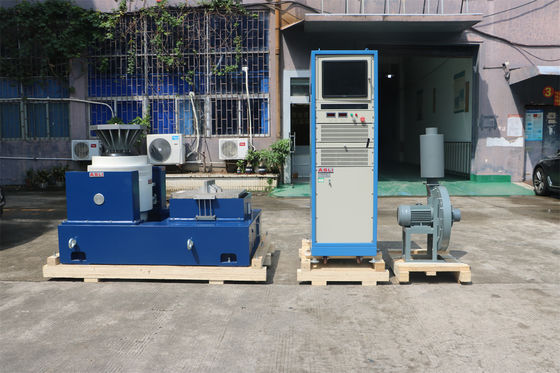

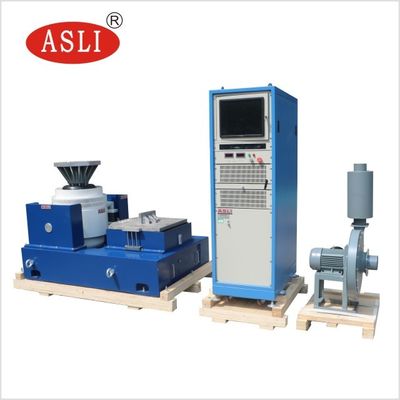

High Frequency Vertical Electrodynamics Vibration Shaker Table Test Machine

This high-performance vibration test machine features a double-magnetic circuit structure with self-generated skeleton action circles, airborne support, roller bearings, and linear guidance. It incorporates advanced trunnion isolation technology to perform X, Y, Z three-axis sinusoidal vibration tests, broadband random vibration tests, classical pulse tests (half-sine, trapezoidal, sawtooth wave), and shock response spectrum tests.

Key Specifications

Frequency range: 5 Hz to 3000 Hz
Test modes: Fixed frequency, sweep back and forth, sine, random, shock
CE Certified for industrial applications

Applications

Widely used in automotive electronics, motor meter assemblies, storage batteries, electric equipment, motors, safety valves, air conditioning compressors, and across defense, aerospace, communications, and electronics industries.

Technical Specifications

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²)	Rated Speed (m/s)	Rated Displacement (p-p) mm	Max. Loading (Kg)	Moving Coil
ES-3	3000	3000	3-3500	1000	1.6	25	100	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	Φ320
ES-30	30000	30000	3-2800	1000	1.8	51	450	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	Φ450

Key Features

Carefully designed moving coil skeleton with higher first-order axial resonant frequency
Light armature with high stiffness for 3500 Hz frequency operation
Computer-controlled operation with immediate data storage capability
Real-time control chart display
Low resistance, high-performance design for efficiency and cost-effectiveness
High reliability with minimal operational faults

Vertical Expander Option

VT vertical extended-bench with specified clamps features precision-calculated design for optimal performance. Constructed with high-quality materials and workmanship for perfect structure and durability.

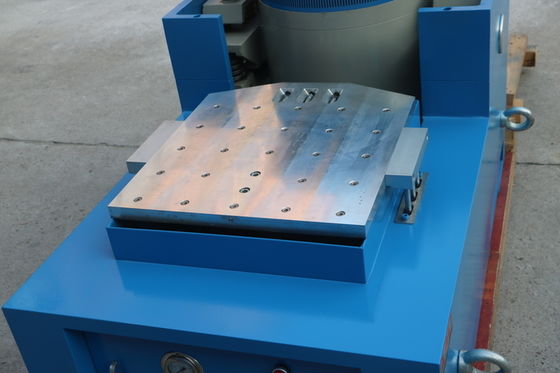

Horizontal Expander Option

Designed for small loading benches to achieve higher acceleration and working frequency, improving overall machine performance. Features static pressure V-shaped track with slope-resistant and bias-loading resistant capacity. Includes built-in oil pump for easy operation.
