IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing

1
MOQ
$26,890
قیمت
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
جهت ارتعاش: لرزش عمودی
نیروی ارتعاش: 20 کیلوگرم
روش کنترل: کنترل کامپیوتر
شتاب: 100 گرم
دامنه فرکانس: 3 ~ 3500 هرتز
وزن سیم پیچ متحرک: 30 کیلوگرم
نوع قدرت: الکترونیکی
نیروی سینوسی دارای رتبه: 10000N (ES-10) ، 20000N (ES-20) ، 30000N (ES-30) ، 40000N (ES-40)
دامنه فرکانس: 3-3000Hz (ES-10 ، ES-20) ، 3-2800Hz (ES-30 ، ES-40)
شتاب امتیازی: 1000 متر بر ثانیه
سرعت: 1.8 متر بر ثانیه
جابجایی رتبه ای: 70 میلی متر (ES-10) ، 80 میلی متر (ES-20) ، 11100mm (ES-30) ، 100mm (ES-40)
حداکثر بارگذاری: 270 کیلوگرم (ES-10) ، 300 کیلوگرم (ES-20) ، 450 کیلوگرم (ES-30) ، 500 کیلوگرم (ES-40)
وزن سیم پیچ متحرک: 14 کیلوگرم (ES-10) ، 30 کیلوگرم (ES-20) ، 40 کیلوگرم (ES-30) ، 50 کیلوگرم (ES-40)
ابعاد سیم پیچ در حال حرکت: φ240mm (ES-10) ، φ320mm (ES-20) ، φ450mm (ES-30 ، ES-40)
برجسته کردن:

IEC 60068-2-6:2008 Vibration Shaker System,20KN Vibration Force Vibration Shaker System,100g Acceleration High Frequency Vibrating Shaker

,

20KN Vibration Force Vibration Shaker System

,

100g Acceleration High Frequency Vibrating Shaker
اطلاعات اولیه
محل منبع: گوانگدونگ ، چین
نام تجاری: ASLI
شماره مدل: ES-20
پرداخت
توضیحات محصول
IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker
The IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. This versatile test platform meets various international specifications including IEC, MIL-STD, JIS, and ASTM standards. It is widely used in aerospace, communications, electronics, electrical, and home appliance industries.

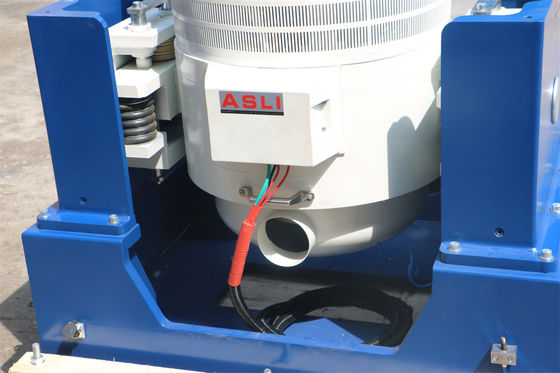

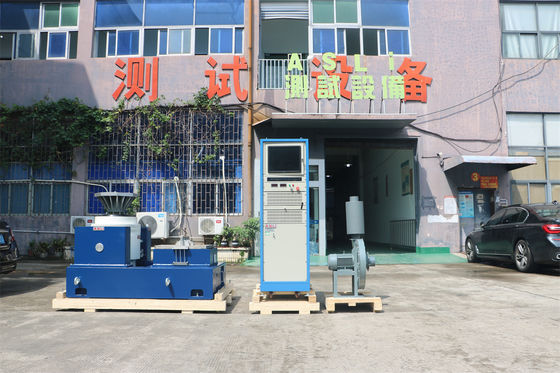

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 0 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 1
Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving coil (Kg) 14 30 40 50
Dimension of Moving coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag with large static stiffness and small dynamic stiffness for superior dynamic performance
  • Rapid self-examination diagnosis and chain protection for high safety and reliability
  • Air bag isolating and damping device eliminates need for special foundation while reducing vibration transmission
  • Compatible with horizontal and vertical expansion platforms
  • Works with various vibration controllers for simple operation

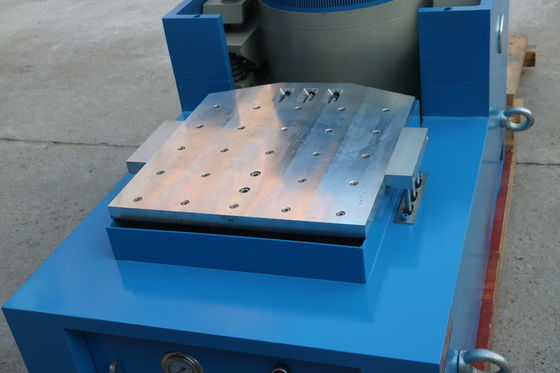

Horizontal Table Features
  • Small loading bench enables higher acceleration and working frequency
  • Integral design with vibration bench for easy installation and adjustment
  • Static pressure track with V-shape design resists slope and bias-loading
  • Built-in oil pump with excellent structure for easy operation

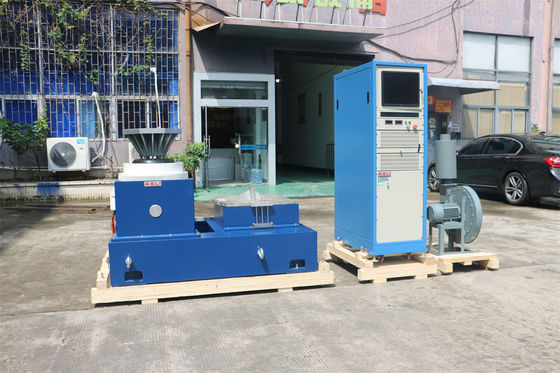

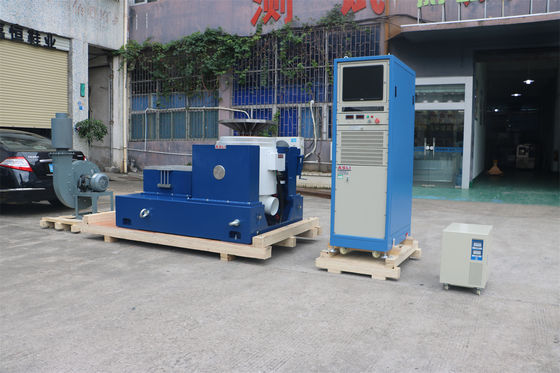

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 2 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 3
Packing & Delivery
IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 4
We provide professional, environmentally friendly, and efficient packaging services to ensure the safety of your goods during transportation.
Company Profile
With 28 years of experience, we are a leading manufacturer of simulation environmental testing equipment and mechanical vibration/shock testing machines. Our IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker is a star product that has obtained CE certification.

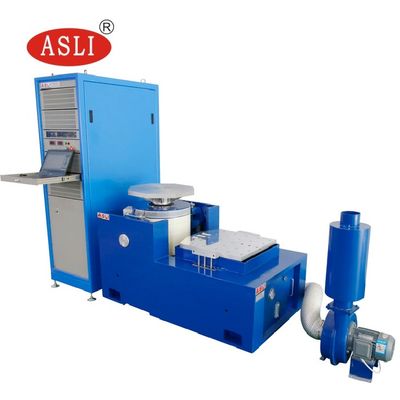

IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 5 IEC 60068-2-6:2008 Vibration Shaker System with 20KN Vibration Force and 100g Acceleration for High Frequency Testing 6
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our IEC 60068-2-6:2008 Sinusoidal Vibration Test High Frequency Vibrating Shaker, please contact us.
